shastra-25

220 G EO LWIR >20KM

shastra-25

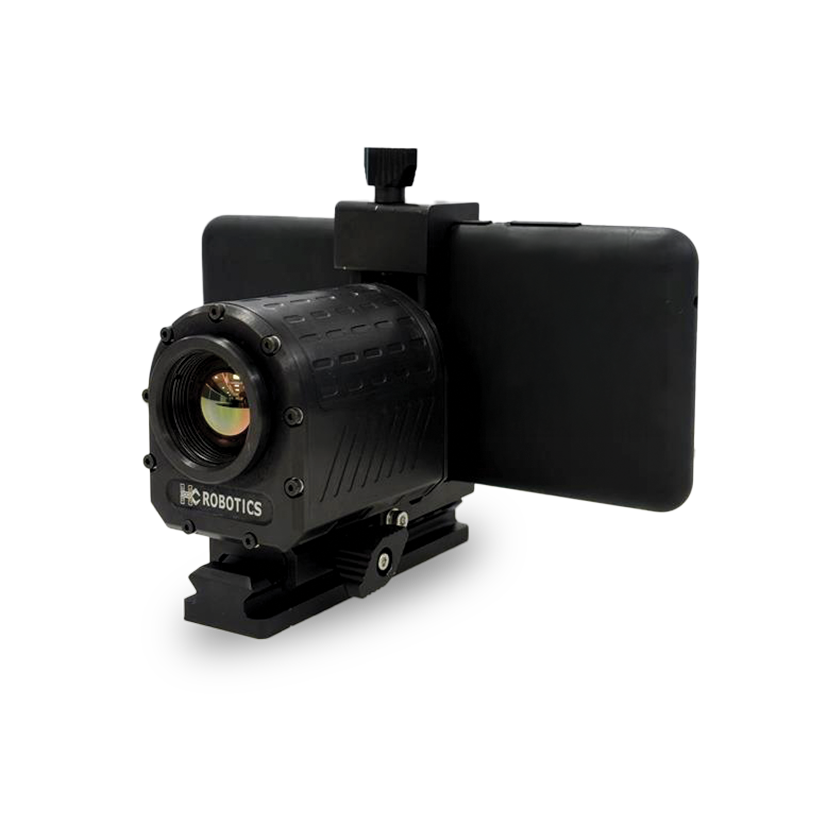

Ultra Light Smart TI Sight is a compact thermal sight with a 384×288 thermal camera, 17 µm pixel pitch, 50 Hz frame rate, and 19.5° x 14.7° FOV. It features a mil-grade screen, 8GB RAM, 256GB ROM, and 8+ hours of recording on a 5000 mAh battery.

Key Specifications

  • Mil Grade Screen
  • FOV : 19.5° x 14.7° or better
  • Image Frame Rate : 50 Hz
  • TI Camera : 17 µm or better
  • Battery : 5000 mAh Lithium
  • Weight : Not more than 200 gm

Technical Specifications:

PHYSICAL

  • Weight : Not more than 220g + 10g (with gun mount)
  • Dimension : 3 x 2.1 x 3.5 (inches) with Gun Mount (Max)
  • IP Rating : IP 67 or better

COMMUNICATION / VIDEO OUTPUTS

  • Type of Display : 16.51cm (6 inch) HD + display

OTHER FEATURES

  • Storage : 8GB RAM & 256 GB ROM
  • Screen : Mil Grade
  • Operating Temp : -20°C to +50°C

POWER

  • Battery : 5000 mAh Lithium
  • Endurance : Min.08 Hours recording on one full charge
  • Charging Time : 1.5 Hrs

SENSORS (STANDARD CONFIGURATION)

TI Camera:

  • Pixel Pitch : 17 µm or better
  • Resolution : 384x288 min or better
  • Image Frame Rate : 50 Hz
  • FOV : 19.5° x 14.7° or better

COMPLEMENTARY PRODUCTS

  • Type c Cable
  • Battery Charger
  • Shockproof case
  • Lithium battery 18650 × 2
  • Lens Cleaning Cloth
  • Torque Wrench
  • Mounting for Picatinny Rail
  • Eye Shade

DRI

  • Human size 1.8m X 0.5m
  • Detection Range : Min 1300m
  • Recognition : Min 400m
  • Human size 1.8m X 0.5m
  • EO : >10/3.1/1.5km
  • IR : 3.6/0.87/0.55km (15mm - 75mm Lens)
  • Vehicle size 2.3m X 2.3m
  • EO : >20/9.5/4.3km
  • IR : 5.5/1.49/0.99km
