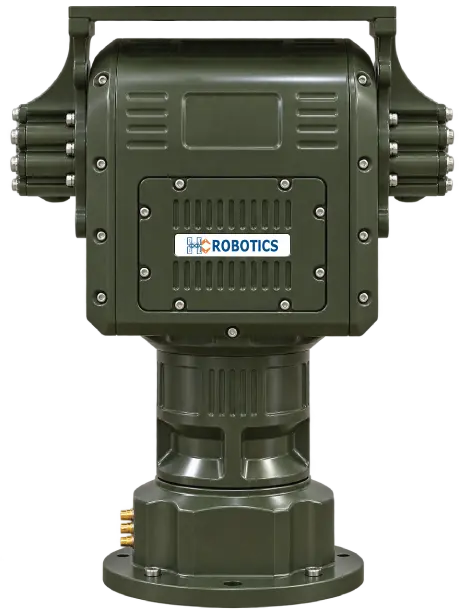

Pan Tilt Unit (PTU)
220 G
EO
LWIR
>800M
Pan Tilt Unit (PTU)
The EO/IR PTZ Camera Series delivers advanced electro-optical and thermal imaging for reliable
long-range surveillance in all weather conditions. Engineered for defense, homeland security, airports,
and critical infrastructure.
Key Specifications
- Optional Laser Rangefinder
- Multiple mounting options
- Rugged Design
- Mission-Critical Reliability
EO/IR PTU AI Capabilities Specification:
| Serial No | Parameter | Specification |
|---|---|---|
| General | ||
| 1 | Pan Angle | 0 - 360° | 0 - 360° |
| 2 | Tilt Angle | -90° to +90° | -90° to +90° |
| 3 | Pan Speed | 0.1° - 100°/s | 0.1° - 100°/s |
| 4 | Tilt Speed | 0.1° - 40°/s | 0.1° - 40°/s |
| 5 | Preset Accuracy | ±0.01° | ±0.01° |
| 6 | Speed | Adaptive | Adaptive |
| PT Unit | ||
| 14 | Input Voltage | 48VDC ±10% | 48VDC ±10% |
| 15 | Video Output | H.264 / H.265 RTSP over Ethernet | H.264 / H.265 RTSP over Ethernet |
| 16 | Camera Control | GUI through Ethernet | GUI through Ethernet |
| 17 | IP Rating | IP66 | IP66 |
| 18 | Weight | 14 kg ±10% | 15 kg ±10% |
