HDL50L
2.3 KG
EO
LWIR
>20KM
HDL50L

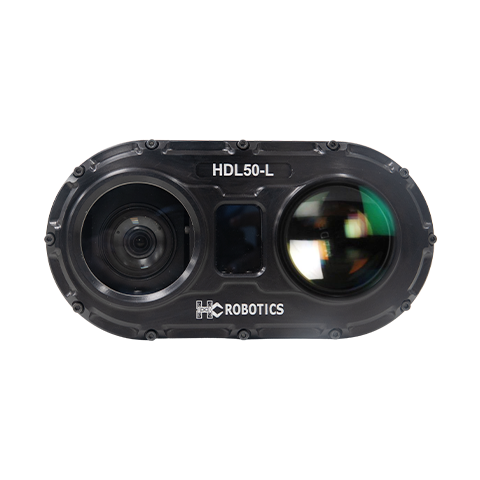

HDL50L is a robust EO/IR gimbal with Full HD day camera featuring 30x optical zoom, a 640×512 uncooled LWIR camera with 50 mm fixed lens, and a Class 1 laser range finder up to 5000 meters. It supports H.264/H.265 RTSP streaming over Ethernet, operates on 24 VDC, consumes under 15 watts, and is protected by IP66 rating.
Key Specifications
- EO Resolution : Full HD
- EO Magnification : 30X optical, 12X Digital
- IR Resolution : 640x512
- IR Lens : 50 mm Fixed
- IR Magnification : 4X Digital
- LRF: 5Km Range
- Vehicle Detection : EO-20Km, IR-5.0Km
Technical Specifications:
PHYSICAL
- Weight 1.2Kg ± 10%
- Height : 100.5 mm
- Width : 166mm
- Length: 185mm
- IP Protection :IP66
COMMUNICATION / VIDEO OUTPUTS
- Camera Control Over Ethernet
- Video Out H.264/H.265
- RTSP Stream over Ethernet
POWER
- Input Voltage 24VDC ± 10%
- With SMPS from AC220V
- Power Consumption >15W
COMPLEMENTARY PRODUCTS
- GCS control station
- Shockproof case
SENSORS (STANDARD CONFIGURATION)
DAY Camera:
- Sensor: 1/2.8-type STARVIS 2 CMOS Sensor
- Resolution: 1920x1080 (Full HD)
- Optical Zoom: 30x
- Digital Zoom: 12X
- Focal Length 4.3 mm (W) to 129 mm (T)
- FOV (H) 64.0° to 2.4°
IR Camera:
- Sensor Uncooled LWIR
- Resolution 640x512
- Pixel pitch 12mm
- NETD < 35 mK
- Lens 50mm fixed lens
- Digital zoom 4x
- FOV 8.8° (H) x 7.04°(V)
PHYSICAL
- Weight 1.2Kg ± 10%
- Height : 100.5 mm
- Width : 166mm
- Length: 185mm
- IP Protection :IP66
COMMUNICATION / VIDEO OUTPUTS
- Camera Control Over Ethernet
- Video Out H.264/H.265
- RTSP Stream over Ethernet
POWER
- Input Voltage 24VDC ± 10%
- With SMPS from AC220V
- Power Consumption >15W
COMPLEMENTARY PRODUCTS
- GCS control station
- Shockproof case
SENSORS (STANDARD CONFIGURATION)
DAY Camera:
- Sensor: 1/2.8-type STARVIS 2 CMOS Sensor
- Resolution: 1920x1080 (Full HD)
- Optical Zoom: 30x
- Digital Zoom: 12X
- Focal Length 4.3 mm (W) to 129 mm (T)
- FOV (H) 64.0° to 2.4°
IR Camera:
- Sensor Uncooled LWIR
- Resolution 640x512
- Pixel pitch 12mm
- NETD < 35 mK
- Lens 50mm fixed lens
- Digital zoom 4x
- FOV 8.8° (H) x 7.04°(V)
SENSORS (STANDARD CONFIGURATION)
Laser Range Finder:
- Laser Safety Class : Class 1
- Wavelength : 1.5 μm
- Ranging Capability : 0 – 5,000 m
- NATO Target Performance : 2,800 m
- Precision : 0.01 – 0.5 m
- Beam Divergence : 0.5 × 2.5 mrad (H × V)
DAY Camera:
- Sensor : 1/2.8-type STARVIS 2 CMOS Sensor
- Resolution : 1920x1080 (Full HD)
- Optical Zoom : 30x
- Digital Zoom : 12X
- Focal Length 4.3 mm (W) to 129 mm (T)
- FOV (H) 64.0° to 2.4°
IR Camera:
- Sensor Uncooled LWIR
- Resolution : 640x512
- Spectral Band 8 – 14um
- Pixel pitch 12 um
- NETD < 35 mK
- Lens 50mm Fixed lens
- Digital zoom : 4x
- FOV 8.8° (H) x 7.04°(V)
PHYSICAL
- Weight 2.3Kg ± 5%
- Height : 105mm
- Width : 205.5mm
- Length : 163mm
- IP Protection : IP66
COMMUNICATION / VIDEO OUTPUTS
- Camera Control Over Ethernet
- Video Out H.264/H.265
- RTSP Stream over Ethernet
POWER
- Input Voltage 24VDC ± 10%
- With SMPS from AC220V
- Power Consumption >15W
COMPLEMENTARY PRODUCTS
- GCS control station
- Shockproof case
- Power adopter 24V DC
- Connecting Cable
DRI
- Human size 1.8m X 0.5m
- EO : >10/3.1/1.5
- IR : 2.4/0.6/0.4km
- Vehicle size 2.3m X 2.3m
- EO : >20/9.5/4.3km
- IR : 5.0/1.4/0.9km
