CHAKSHU 218ZR

1.8 KG EO LWIR >20KM

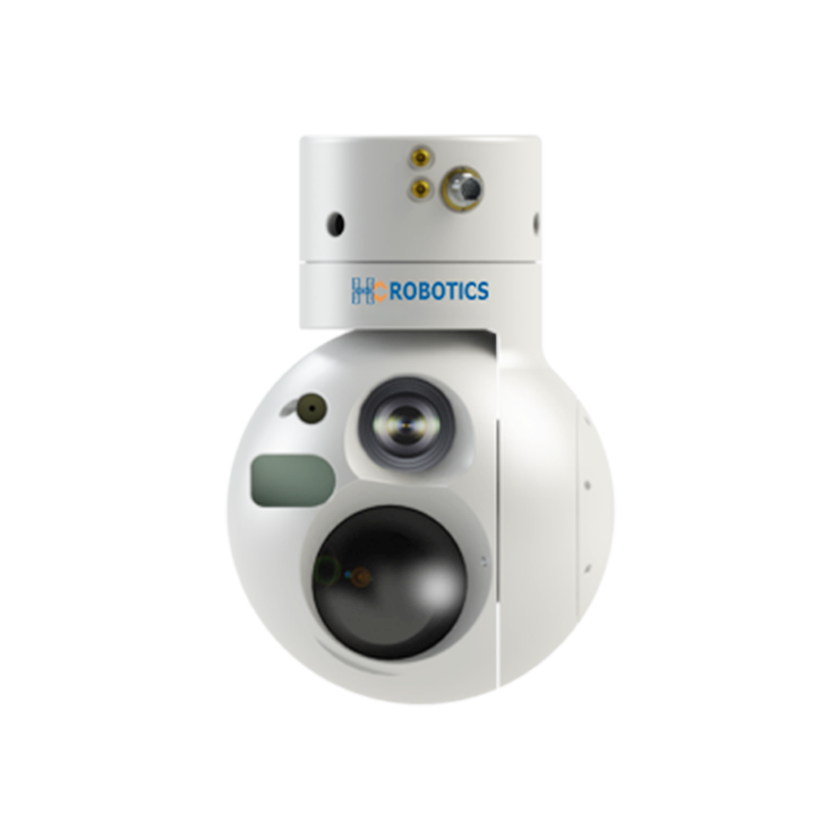

Chakshu-218ZR

Chakshu-218ZR is a high-performance EO/IR gimbal with Full HD imaging, 30x optical zoom, and 640×480 IR. Featuring 360° pan/tilt, 5 km LRF, geo-tracking, and IMU stabilization, it ensures precision surveillance with multi-channel streaming and rugged IP64 design.

Key Specifications

  • EO Resolution : Full HD
  • EO Magnification : 30X Optical, 12X Digital
  • IR Resolution : 640x480
  • IR Magnification : 5X optical, 4X Digital
  • Vehicle Detection : EO-20Km, IR-5.4Km
  • Min diameter : 105 mm (main body)
Chakshu-218zr

Technical Specifications:

PHYSICAL

  • Weight: 1.8KG
  • Height : 234 mm
  • Min diameter : 105 mm (main body)
  • Max diameter : 160 mm
  • Pan : 360° / Tilt : 360°
  • IP rating : IP64

COMMUNICATION / VIDEO OUTPUTS

  • GIMBAL : RS232
  • EO : SDI
  • IR: CVBS / SDI
  • Simultaneous channels stream

OTHER FEATURES

  • Geo-tracking
  • Geo-localisation
  • Inner IMU for stabilisation and
    artificial horizon computation
  • High torque direct drive technology
  • Stabilisation <150 μrad

POWER

  • 8V to 36V, typ. 12W max 22W
  • Reverse polarity protection

SENSORS (STANDARD CONFIGURATION)

  • Day camera : Full HD
  • Optical zoom : 30x (FOV 63.7° - 2.3°)
  • Infrared camera : 640x480 pixels
  • Lens : 15-75mm
  • LRF : LRF Class1, 5Km Range
  • Laser Pointer : visible (515nm) or IR (830nm)

COMPLEMENTARY PRODUCTS

  • GCS control station
  • Video processing and recording module
  • Shockproof case

DRI

  • Human size 1.8m X 0.5m
  • EO : >10/3.1/1.5
  • IR : 3.6/0.87/0.55km
  • Vehicle size 2.3m X 2.3m
  • EO : >20/9.5/4.3km
  • IR : 5.4/1.49/0.99km
