CHAKSHU 18
1.050 KG
EO
LWIR
>20KM

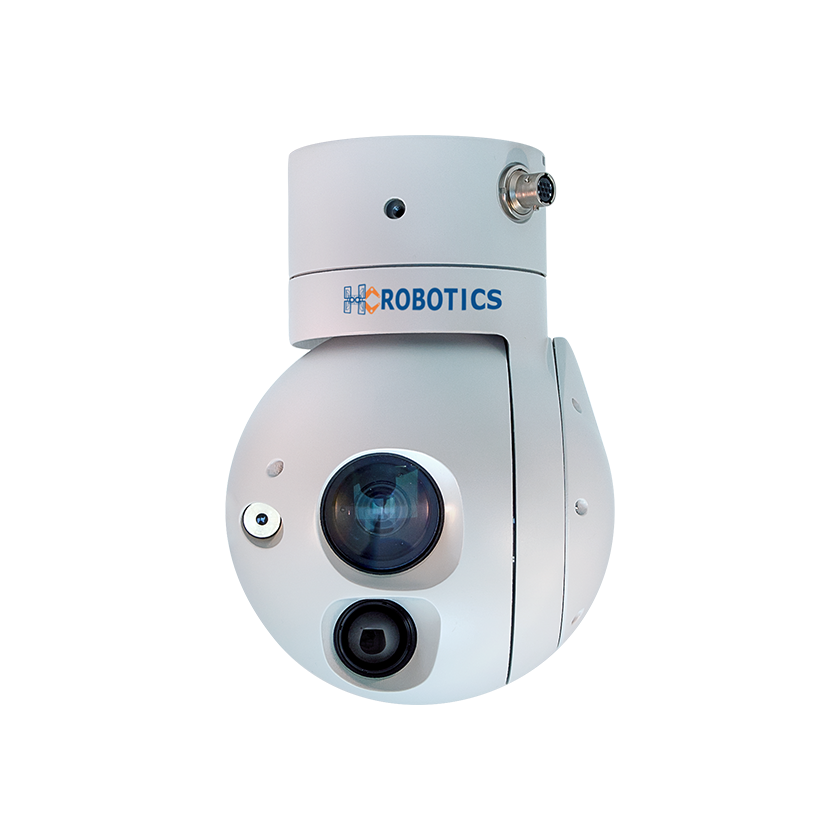

Chakshu 18
Gyro-stabilized gimbal cameras maintain stable orientation despite turbulence or
sudden movements, delivering smooth, professional-grade imagery. Ideal for
applications such as filmmaking, aerial photography, surveillance, and cinematography.
Key Specifications
- EO Resolution: Full HD
- EO Magnification: 30X Optical, 12X Digital
- IR Resolution: 640x480
- IR Magnification: 4X Digital
- VehicleDetection: EO-20Km, IR-2.352Km
- Optical zoom: 30x (FOV 63.7° - 2.3°)
- IP rating : IP64
By maintaining a stable orientation regardless of external factors, such as turbulence or sudden changes in direction, gyro-stabilized gimbal cameras excel in providing professional-grade imagery for a wide range of applications, including filmmaking, aerial photography, surveillance, and cinematography.
- Gimbal for less than 1 kg
- High end gimbal addressing mini drones segment
- Full HD day light channel
- Optical zoom x30
- IR sensor with lens selectable from 13mm up to 35mm
- Optional laser pointer
- Inner IMU for stabilisation and artificial horizon computation
Technical Specifications:
PHYSICAL
- Weight : 1.050 KG
- Height : 234 mm
- Min diameter : 105 mm (main body)
- Max diameter : 160 mm
- Pan : 360° / Tilt : 360°
- IP rating : IP64
COMMUNICATION / VIDEO OUTPUTS
- GIMBAL : RS232
- EO : SDI
- IR: CVBS / SDI
- Simultaneous channels stream
OTHER FEATURES
- Geo-tracking
- Geo-localisation
-
Inner IMU for stabilisation and
artificial horizon computation - High torque direct drive technology
- Stabilisation <150 μrad
POWER
- 8V to 36V, typ. 12W max 22W
- Reverse polarity protection
SENSORS (STANDARD CONFIGURATION)
- Day camera : Full HD
- Optical zoom: 30x (FOV 63.7° - 2.3°)
- Infrared camera : 640x480 pixels
- Lens: 35mm Fixed
COMPLEMENTARY PRODUCTS
- GCS control station
- Video processing and recording module
- Shockproof case
DRI
- Human size 1.8m X 0.5m
- EO : >10/3.1/1.5
- IR : 1.029/0.309/0.218 Km
- Vehicle size 2.3m X 2.3m
- EO : >20/9.5/4.3km
- IR : 2.352/0.738/0.409 Km
